| Galvanized strip is a long, narrow strip of cold or hot rolled steel coated in varying degrees with a material called (zinc,aluminum). Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between hot-dip galvanized strip steel matrix and molten bath to form a tight zn-fe alloy layer with corrosion resistance. The alloy layer is integrated with the pure zinc layer and the strip matrix. Therefore, its corrosion resistance is strong. |
|
Standard
|
AISI,ASTM,GB,JIS
|
Material
|
SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D
|
|
Thickness
|
0.16-5mm
|
|
|
|
Tolerance
|
+/-0.02mm
|
|
|
|
Coil ID
|
508-610MM
|
|
|
|
Technique
|
Hot rolled, cold rolled
|
|
|
|
Certification
|
ISO 9001-2008,SGS,CE,BV
|
|
|
|
Delivery
|
7-10 days
|
|
|
|
Surface treatment:
|
Oiled, passivation or chromium-free passivation, passivation+oiled,
chromium-free passivation+oiled, resistant to fingerprints or
chromium-free resistant to fingerprints |
||
|
Spangle
|
regular spangle,minimal spangle, zero spangle,big spangle
|
||
|
Payment
|
30%T/T in advanced+70% balanced;irrevocable L/C at sight
|
||
|
Remarks
|
Insurance is all risks and accept the third party test
|
||
|
Mechanical properties of galvanized steel
|
|||
|
Usage
|
Grade
|
Yield strength(MPa)
|
Tensile strength(MPa)
|
|
Punching galvanized steel
|
DC51D+Z
|
-
|
270-500
|
|
DC52D+Z
|
140-300
|
270-420
|
|
|
DC53D+Z
|
140-260
|
270-380
|
|
|
Structure galvanized steel
|
S280GD+Z
|
≥280
|
≥360
|
|
S350GD+Z
|
≥350
|
≥420
|
|
|
S550GD+Z
|
≥550
|
≥560
|
|
|

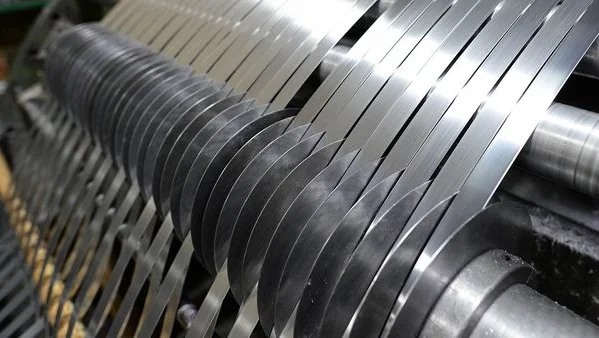

Technological production process The production process of cold rolled strip is generally as follows: pickling → rolling → process lubrication → annealing → leveling → cutting → packaging. Cold rolling process: pickling -- rolling -- annealing -- synchronous lubrication of rolling size -- anti-rust oil -- leveling and sizing -- polishing -- packaging Heating furnace of hot rolled strip steel: - phosphorus removal machine, roughing mill, phosphorus removal machine, finishing mill, surface quality inspection instrument - layer of cold - reel, baling machine, injection machine - volume base slab. |
|
Long Life-span
With galvanization, a piece of industrial steel is expected to last more than 50 years in average environments, and can last over
20 years with severe water exposure. There is no maintenance required. The increased durability of the steel’s finished product also increases the product’s reliability. |
|
Rust Resistance
From the zinc coating. The iron elements in steel are incredibly prone to rusting, but the addition of zinc acts as a protective
buffer between the steel and any moisture or oxygen. Galvanized steel is very protective, including sharp corners and recesses that couldn’t be protected with other coatings, making it resistant to damage. |
|
Title goes here.
The sacrificial anode ensures that any damaged steel is protected by the surrounding zinc coating. It doesn’t matter if the steel
section is completely exposed; the zinc will still corrode first. The coating will corrode preferentially to the steel, creating a sacrificial protection to the areas that are damaged. Chemical Composition
Galvanized Steel 0.18mm-20mm thick galvanized steel sheet 2mm thick Hot dip galvanized steel sizes galvanized sheet metal roll
|
|
Chemical
Compose
|
Grade
|
C %
|
Si %
|
Mn %
|
P %
|
|
≤0.12Q195
|
Q195
|
≤0.30
|
≤0.50
|
≤0.035
|
|
|
Q235
|
≤0.22
|
≤0.35
|
≤1.4
|
≤0.035
|
|
|
DX51D
|
≤0.12
|
≤0.50
|
≤0.60
|
≤0.1
|
|
|
SGCC
|
≤0.15
|
-
|
≤0.80
|
≤0.05
|
|
|
Mechanical
Property |
Grade
|
Yield Strength
MPA |
Tensile Strength
MPA |
||
|
Q195
|
≥195
|
315-430
|
|||
|
Q235
|
≥235
|
370-500
|
|||
|
DX51D
|
-
|
270-500
|
|||
|
SGCC
|
≥205
|
≥270
|
|||
| Steel belt is a large output, wide use, variety of steel. According to the processing method, it can be divided into hot rolled strip and cold rolled strip. According to their thickness, they can be divided into thin steel strip (thickness no more than 4mm) and thick steel strip (thickness greater than 4mm); According to the width, it is divided into wide steel belt (width is greater than 600mm) and narrow steel belt (width is less than 600mm); Narrow steel strip is divided into direct rolling narrow steel strip and narrow steel strip by longitudinal shear of wide steel strip; According to the surface state, it can be divided into original rolling surface and plating (coating) surface steel strip. According to the use, it can be divided into general and special (such as hull, bridge, oil drum, welded pipe, packaging, self-generated car, etc.) steel belt. |

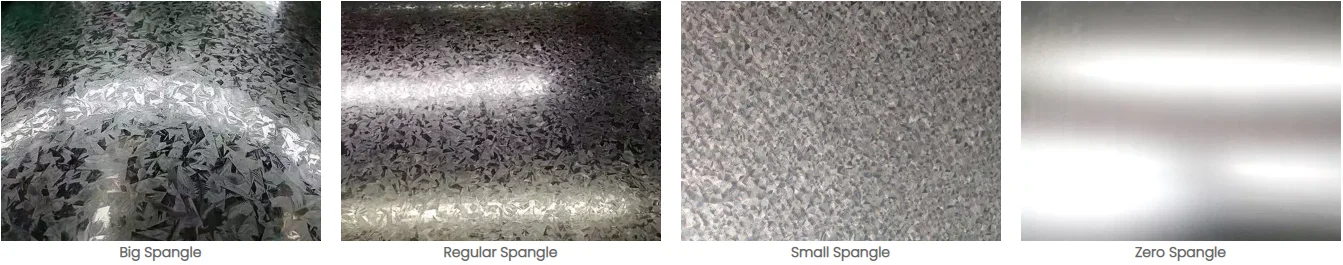

Galvanized narrow stripSpangle is formed during the hot-dip galvanizing process. The size, brightness, and surface of spangles mainly depend on the composition of zinc layer and the cooling method. According to the size, it includes small spangles, regular spangles, big spangles, and free spangles. They look different, but the spangles almost will not influence the quality of galvanized steel. You can choose according to your preference and purpose.

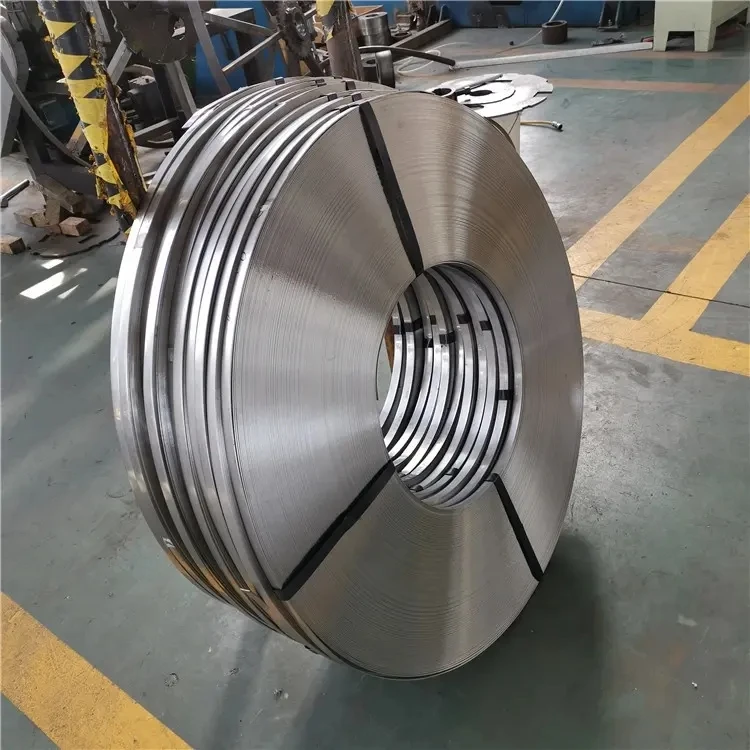

Galvanized narrow strip
|
